Série VXS "modelo M"

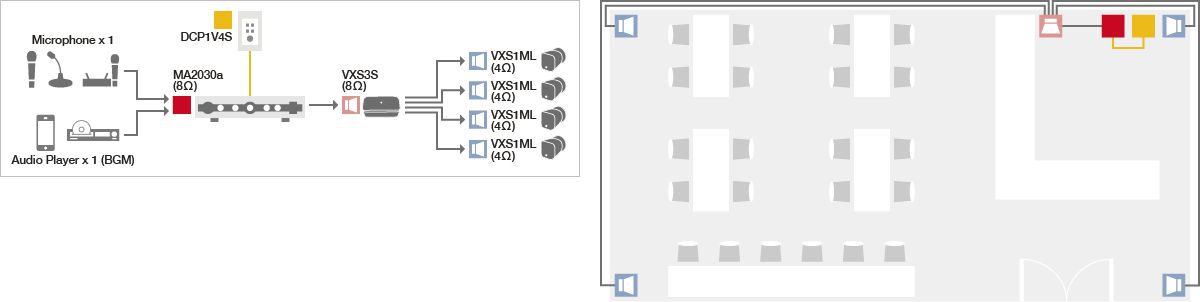

Exemplo de Sistema 1. Café
The VXS1ML and VXS3S system is ideal for BGM application such as cafe where just a few speakers will be used to cover the service area. Wide dispersion allows effective coverage with a minimum number of speakers. It can be installed easily and quickly with satellite connection.
![](/pt/files/system_example_1_cafe_image_6-1_687201780522aa01dce97325a9592738.jpg?impolicy=resize&imwid=1200&imhei=302)

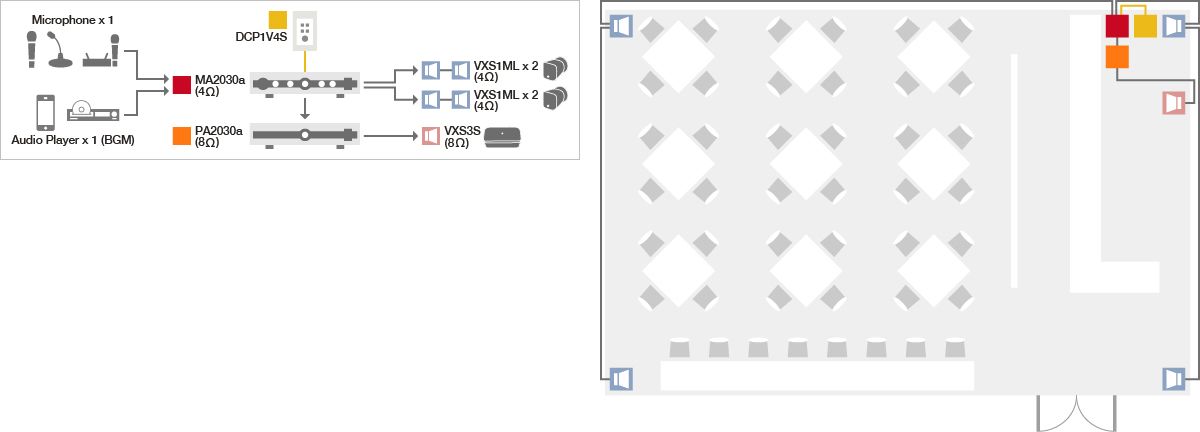

Exemplo de Sistema 2. Café
This is a flexible system that can control the mid-high and the low frequency range separately. You can flexibly adjust the balance according to your preference and sound source.
![](/pt/files/system_example_2_cafe2_image_7-1_36d527d17a8ea7c6e8188d97f85c419d.jpg?impolicy=resize&imwid=1200&imhei=432)

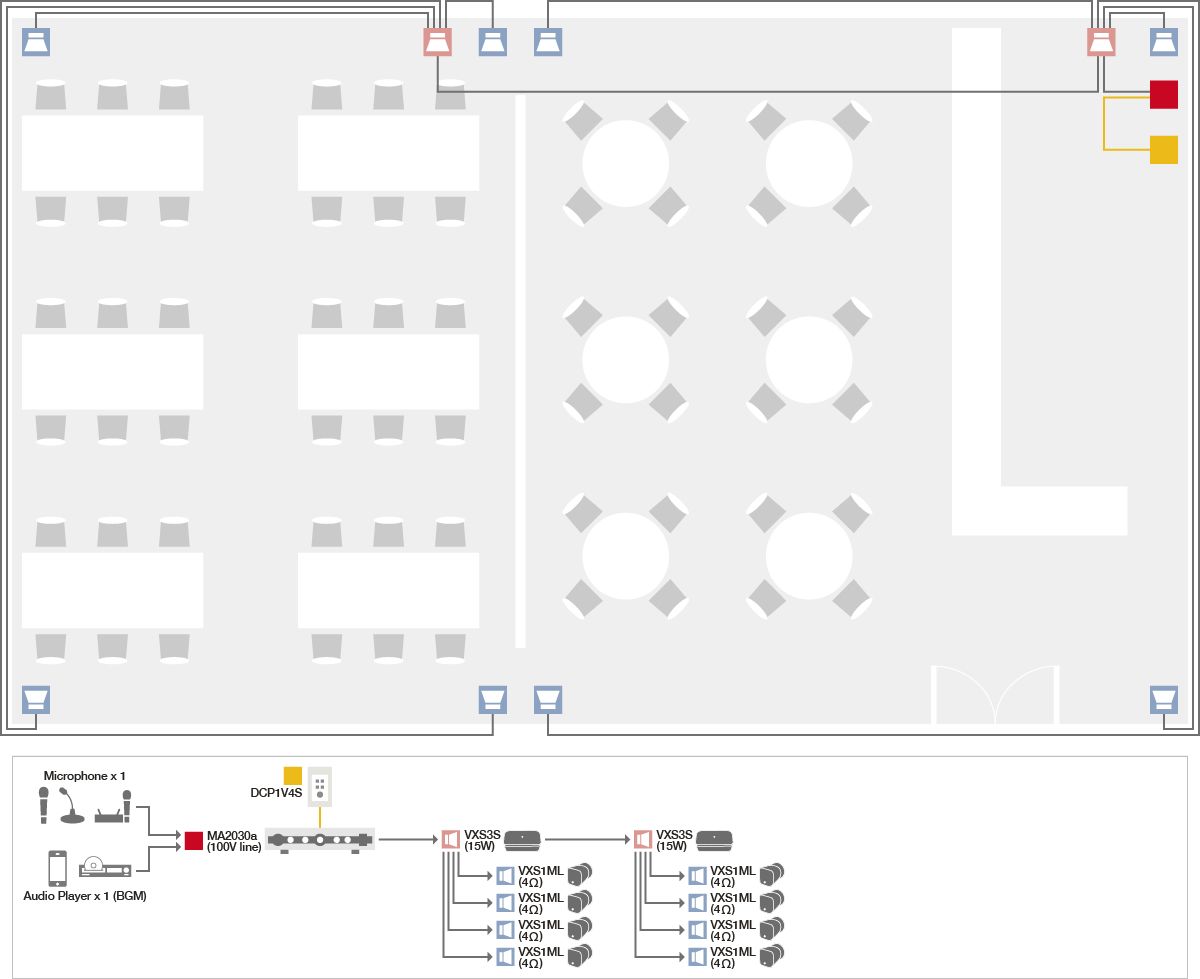

Exemplo de Sistema 3. Café
This is a system that connected VXS3S with high impedance and constructed multiple satellites. You can easily change the required volume by switching the output W number by tapping.
![](/pt/files/system_example_3_restaurant_image_8-1_6c2024df1b7c86fb8b69d6259e421c44.jpg?impolicy=resize&imwid=1200&imhei=979)
System Example 4: Retail store
This is a system that connected VXS3S with high impedance and constructed multiple satellites. You can easily change the required volume by switching the output W number by tapping. The MA2120 can deliver different sources at different volumes in the respective zone.
![](/pt/files/system_example_4_retail_store_image_9-1_ad84b07120f2e9fa5a12ffe1aecc3814.jpg?impolicy=resize&imwid=1200&imhei=1260)
