Série VXS "modelo F"

Linha de produtos

VXS3F / VXS3FWS55

Cores e acabamentos

Compact surface-mount speakers elegantly blend into any interior décor (Low-impedance models)

3.5” full-range speaker units
Low-impedance model for small installations
Attractive, discreet design complements elegant décor
Dedicated design-enhancing bracket included
Acoustic design for sophisticated, natural reproduction
Individual speakers cover a wide angle
Paintable enclosures and grilles

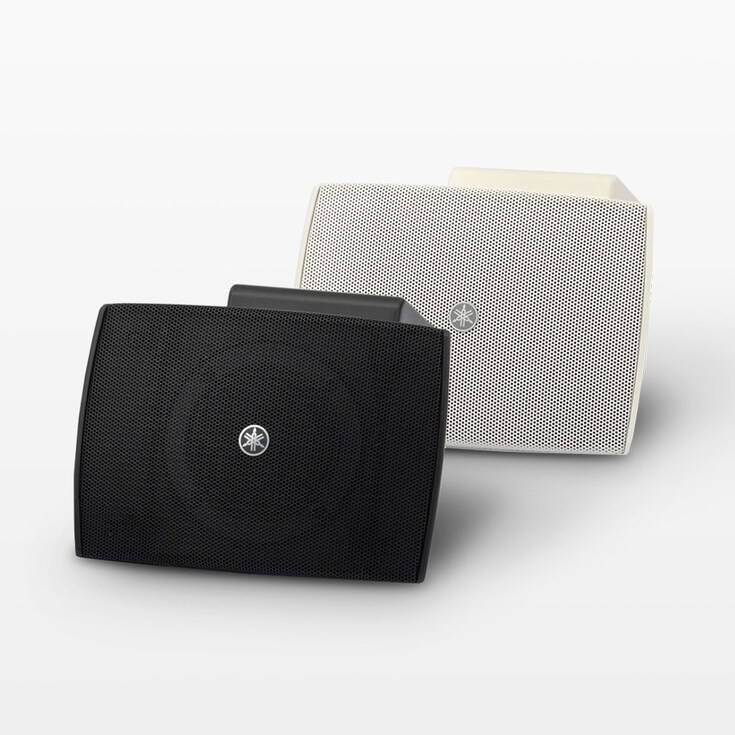

Black and white models available
1.1kg (2.4 lbs)*, W 184mm x H 130mm x D 134 mm (W 7.3" x H 5.1" x D 5.3")* *Including bracket

VXS3FT / VXS3FTWS55

Cores e acabamentos

Compact surface-mount speakers elegantly blend into any interior décor (High-impedance models)

3.5” full-range speaker units
High-impedance model for large installations
Attractive, discreet design complements elegant décor
Supplied bracket with dedicated transformer complements the overall design
Acoustic design for sophisticated, natural reproduction
Individual speakers cover a wide angle
Paintable enclosures and grilles
Black and white models available
1.7kg (3.7 lbs)*, W 184mm x H 178mm x D 139 mm (W 7.3" x H 7.0" x D 5.5")* *Including bracket

Caraterísticas

Estilo e substância

As caixas de montagem em superfície podem desempenhar um papel fundamental na atmosfera visual e auditiva que você escolhe criar em seu espaço comercial. As curvas elegantes e o design atraente e minimalista das caixas VXS3F e VXS3FT da Yamaha os tornam facilmente adaptáveis a qualquer ambiente comercial que busca um complemento sutil e único para a estética geral. E seu desempenho é tão impressionante; apresentando uma unidade de alto-falante otimizada para reprodução de música em alta resolução e um design flexível e intuitivo, essas caixas contribui a todos os envolvidos no processo de instalação - desde instaladores e proprietários a usuários finais - uma solução simples e otimizada para integrar facilmente áudio de alta qualidade em uma variedade impressionante de restaurantes, lojas ou ambientes profissionais. Ao combinar este design sutil e atraente com a atenção estrita à qualidade de som que rendeu à Yamaha renome mundial, as caixas de montagem em superfície VXS3F e VXS3FT provam que estilo e substância nem sempre são mutuamente exclusivos.

Attractive, Discreet Design for Elegant Spaces

The polished presence of the VXS3F or VXS3FT can add stylish appeal to any environment. These speakers present a slim installed profile that appears to float in space, blending easily with just about any décor. The size of the speaker enclosure has been reduced as much as possible, while smoothly flowing lines and surfaces add visual charisma.

Sophisticated Natural Sound

The VXS3F and VXS3FT deliver refined, naturally pleasing sound. In order to provide richly expressive music playback even at low volume, Yamaha has applied years of accumulated skill and experience in tuning the system for the most natural reproduction of musical instruments as well as human voices. Careful selection of the highest quality drivers and components also elevates overall quality.

Escolha o modelo que se ajusta às suas necessidades

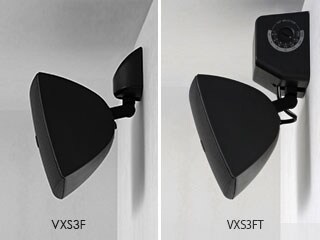

The VXS3F and VXS3FT are designed to deliver the same outstanding performance in different installed settings*. The VXS3F is ideal for smaller installations such as retail stores where just a few speakers will be used to cover the service area. Wide dispersion allows effective coverage with a minimum number of speakers. The VXS3FT is preferred when a large number of speakers will be required to cover an expansive or complex area. Connection taps allow volume (output watts) to be adjusted after installation for added flexibility. * The VXS3F and VXS3FT feature the same enclosure, but are supplied with different mounting brackets.

Designer's Comments

The compact VXS3F and VXS3FT feature an elegantly sculpted exterior design that visually expresses the outstanding quality and clarity of their sound. Gracefully flowing curves from rear to front represent the directness of the sound, while the triangular cross section makes optimum use of the space between walls and ceiling for seamless, efficient installation. With a design that creates the illusion of floating gently in space rather than appearing as a mechanical “unit” attached to a surface as an afterthought, these speakers are ideal for owners and proprietors who want to provide the highest sound quality without disrupting their interior décor.- Takenori OMACHI, Yamaha Design Laboratory -

Yamaha Design "Synapses"

Yamaha Design "Synapses" expresses our design passion, through the conceptual keywords organically connecting whole Yamaha product design.

Sistemas

System Example 1: Café

The VXS3F (Low-impedance model) is ideal for smaller installations such as retail stores where just a few speakers will be used to cover the service area. Wide dispersion allows effective coverage with a minimum number of speakers. The MA2030a is a stylish mixer amplifier that can be easily used without any prior audio experience. All you need to get started is the MA2030a, VXS3F speakers, and a music source of your choosing. You can add a microphone for announcements and small events if necessary, easily broadening the scope of your business.

System Example 2: Restaurant

The VXS3FT (High-impedance model) is preferred when a large number of speakers will be required to cover an expansive or complex area. Connection taps allow volume (output power) to be adjusted after installation for added flexibility. With VXS series F models and a mixer amplifier MA2030a, it is possible to create a streamlined, high-performance system that allows microphone use while BGM is being played, for example. Add a power amplifier such as the PA2030a for zoning capability.

System Example 3: Retail store

The combination of VXS3F/VXS3FT speakers and VXS10S/VXS10ST subwoofers is recommended to enhance the power and excitement of rhythmic music. A single unit of MA2120, which has independently controllable two output channels, would be a good choice for broadcasting announcements or advertisements while supplying background music. It allows users to create a comfortable, agreeable environment by carefully adjusting the output volume of each channel. The DCP1V4S control panel installed in the area allow remote control of background music volume and other operations.
