Série VXS "modelo S"

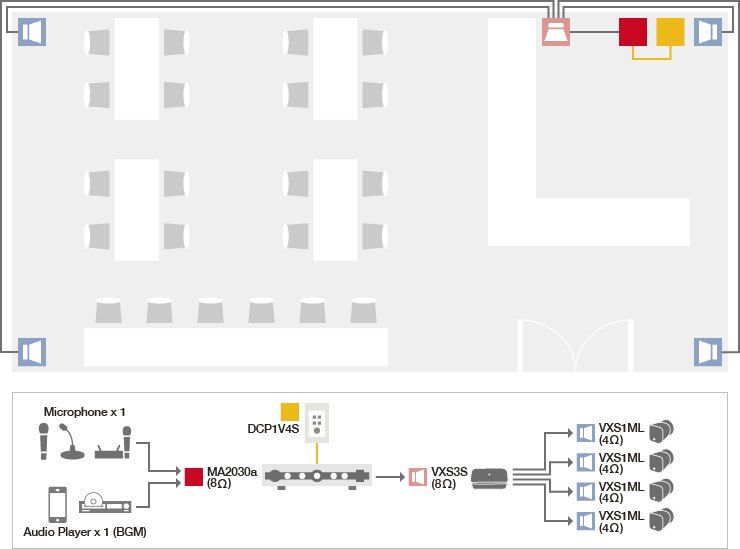

Exemplo de Sistema 1. Café
The VXS1ML and VXS3S system is ideal for BGM application such as cafe where just a few speakers will be used to cover the service area. Wide dispersion allows effective coverage with a minimum number of speakers. It can be installed easily and quickly with satellite connection.
![](/pt/files/A3E94E8476214B5CA3CC1CB6379DCEBA_12083_5af828c886cf1b1e0420fdf97e9a605c.jpg?impolicy=resize&imwid=740&imhei=549)

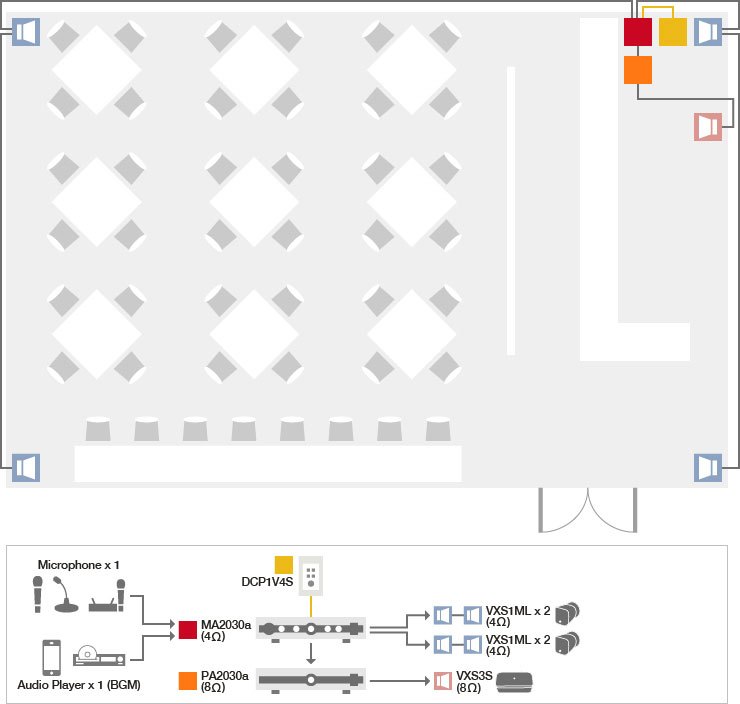

Exemplo de Sistema 2. Café
This is a flexible system that can control the mid-high and the low frequency range separately. You can flexibly adjust the balance according to your preference and sound source.
![](/pt/files/23259A1E76CA4A8F8D8AC7DAB0CF89CA_12083_59fe2a223781dd905973db60a87eb450.jpg?impolicy=resize&imwid=740&imhei=704)

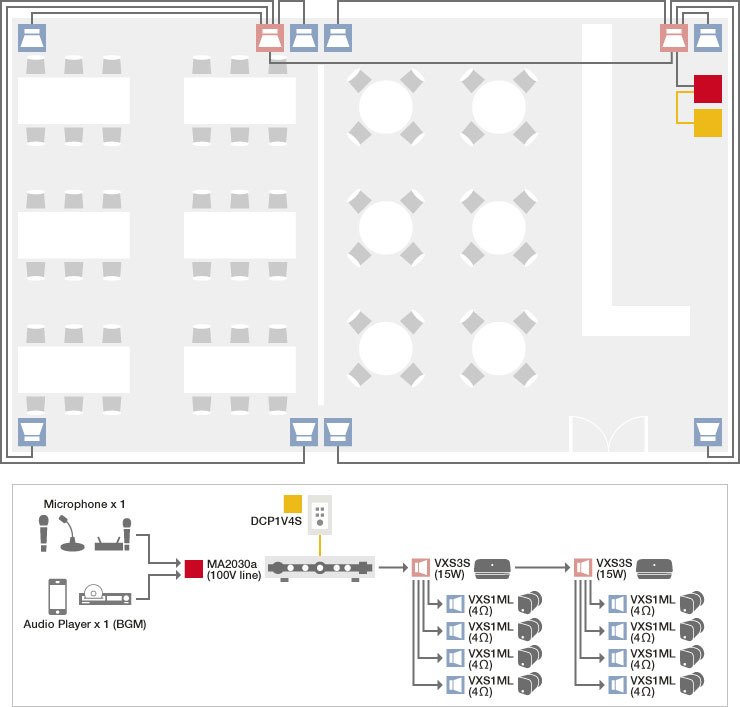

Exemplo de Sistema 3. Café
This is a system that connected VXS3S with high impedance and constructed multiple satellites. You can easily change the required volume by switching the output W number by tapping.
![](/pt/files/D758289E59EC45AB807503F32137CA4C_12083_793b45493c0e857a1ae9cd92085fc069.jpg?impolicy=resize&imwid=740&imhei=707)
System Example 4: Retail store
This is a system that connected VXS3S with high impedance and constructed multiple satellites. You can easily change the required volume by switching the output W number by tapping. The MA2120 can deliver different sources at different volumes in the respective zone.
![](/pt/files/7FCAA154CB6645B697535E69996C755E_12083_460528b5a782fa42ec1f76810a0f6b70.jpg?impolicy=resize&imwid=740&imhei=968)
