SÉRIE R (AD/DA): 2º Geração

Linha de produtos

Rio3224-D2Rack I/O

Descontinuado

Esta rack I/O de alta capacidade e performance é compatível com mesas Yamaha das séries CL e QL, assim como da série RIVAGE PM. Inclui 32 entradas analógicas, 16 saídas analógicas e oito saídas AES/EBU digitais. A Rio3224-D2 liga-se diretamente às redes de áudio digital Dante, permitindo configuração flexível de sistema. Unidades duplas de alimentação elétrica foram incorporadas para alta fiabilidade, e um visor gráfico/carácter oferece fácil confirmação visual.

32 entradas e 16 saídas analógicas, e 8 saídas digitais.
Ligações redundantes são compatíveis com conectores primários e secundários. Ligações Daisy chain também são compatíveis.
Exibição abrangente e controlo local de ganho e outros parâmetros.
Unidades duplas de alimentação elétrica foram incorporadas para alta fiabilidade.wer supply units are built in for high reliability.
Consumo elétrico: 120W
Dimensões (LxAxP): 480 x 220 x 368mm (18.9" x 8.7" x 14.5")
Peso Líquido: 13.5 kg (29.8 lbs)

Rio1608-D2Rack I/O

Descontinuado

Esta Rack I/O de alta-performance inclui 16 entradas analógicas e 8 saídas analógicas, e é compatível com mesas Yamaha das séries CL e QL, assim como da série RIVAGE PM. A Rio1608-D2 liga-se diretamente a redes de áudio digital Dante, permitindo uma configuração flexível de sistema. Unidades duplas de alimentação elétrica foram incorporadas para alta fiabilidade, e um visor gráfico/carácter oferece fácil confirmação visual.

16 entradas analógicas e 8 saídas.
Ligações redundantes são compatíveis com conectores primários e secundários. Ligações Daisy chain também são compatíveis.
Exibição abrangente e controlo local de ganho e outros parâmetros.
Unidades duplas de alimentação elétrica foram incorporadas para alta fiabilidade.
Consumo elétrico: 72W
Dimensões (LxAxP): 480 x 132 x 368mm (18.9" x 5.2" x 14.5")
Peso Líquido: 9.6 kg (21.2 lbs)

Caraterísticas

Dante-ready I/O Racks with Enhanced Sound, Reliability, and Displays

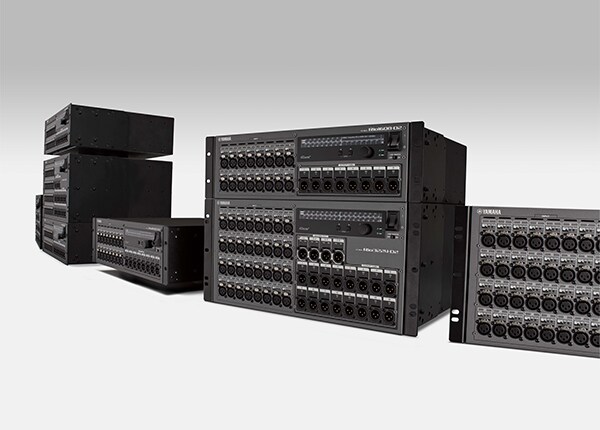

The Yamaha Rio3224-D2 and Rio1608-D2 are high-performance I/O Rack units with built-in Dante audio networking. Designed and manufactured to achieve outstanding sonic transparency in keeping with Yamaha’s “natural sound” philosophy, they play a vital role in supporting the performance capabilities of the associated console, offer extensive freedom for placement and multi-unit combinations, and allow redundancy for high reliability. The Rio3224-D2 and Rio1608-D2 are not only standard components of the RIVAGE PM7 Digital Mixing System, but are also fully compatible with CL and QL series digital mixing consoles, offering excellent audio and operational performance that makes the most of Dante networking potential.

Tutorial Video

Yamaha RIVAGE/CL/QL: How the New Rio-D2 Racks can improve your system!

Kevin Kimmel, Mixer Product Manager at Yamaha Corporation of America, introduces two new Dante equipped I/O Rack units: the Rio3224-D2 and Rio1608-D2. These I/O racks can be used with the new RIVAGE PM7 digital mixing system as well as current CL and QL series digital mixing consoles.

RIVAGE PM Series Audio Quality Boosts Creative Freedom

Yamaha’s unwavering approach to live sound reinforcement is wholly inherited in the Rio3224-D2 and Rio1608-D2 I/O Racks, allowing the on-stage sound to be cleanly captured and then shaped as required by the engineer. Analog circuitry developed for the first-generation Rio3224-D and Rio1608-D I/O Racks has been revised to deliver sound that represents another evolution in Yamaha’s “natural sound” concept, and overall performance that is truly worthy of “RIVAGE PM series” status.

Dante Network Protocol for Flexible System Setup

Audinate’s Dante network protocol offers extensive flexibility for system setup and configuration. With Dante, you have the freedom to use just about any combination of devices that suits the application, and to position those devices wherever they will be most convenient. It also allows for redundancy that can keep the system running even if a problem occurs. Then there’s the Dante Controller software application for easy, flexible patching of devices on the network.

In addition to supporting the AES67 standard for audio over IP interoperability, Dante offers other valuable facilities such as Dante Device Lock to prevent unauthorized operation, and the Dante Domain Manager for efficient user authentication and role-based security.*

* Visit the Audinate website for more Dante Domain Manager information.

Dual Redundant Power Supplies and Improved, Quiet Airflow

Power failure is a major risk when operating any audio I/O device. Both the Rio3224-D2 and Rio1608-D2 I/O Racks include dual power supply units to reduce the chance that power loss will result in downtime during a show. If a problem occurs with one power source, operation will continue unaffected as long as the second power source is active. Internal airflow has been redesigned too, reducing fan noise for notably quieter operation.

Character Displays and Control Improvements

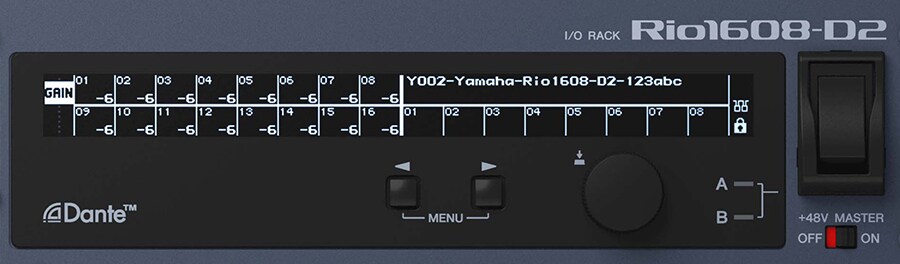

Another Rio3224-D2 and Rio1608-D2 refinement is the provision of character/icon displays rather than basic LED indicators, allowing quick, easy confirmation of Dante settings as well as metering, gain, high-pass filters, phantom power, and more. It is also possible to edit gain, high-pass filters, and phantom power settings directly from the I/O Rack interface, and even lock them if required. Remote operation from the R Remote software application is also possible.

Digital Compensation for Analog Gain Changes

When multiple consoles are connected to one I/O rack and operators at those consoles make analog gain changes, the results can be unpredictable and usually undesirable. The Rio3224-D2 and Rio1608-D2 feature a Gain Compensation function that automatically adjusts gain at the digital stage to compensate for analog gain changes, ensuring that sound is sent to the network at a constant level.

Sistemas

RIVAGE PM system: 96 kHz, Dante & TWINLANe Networking

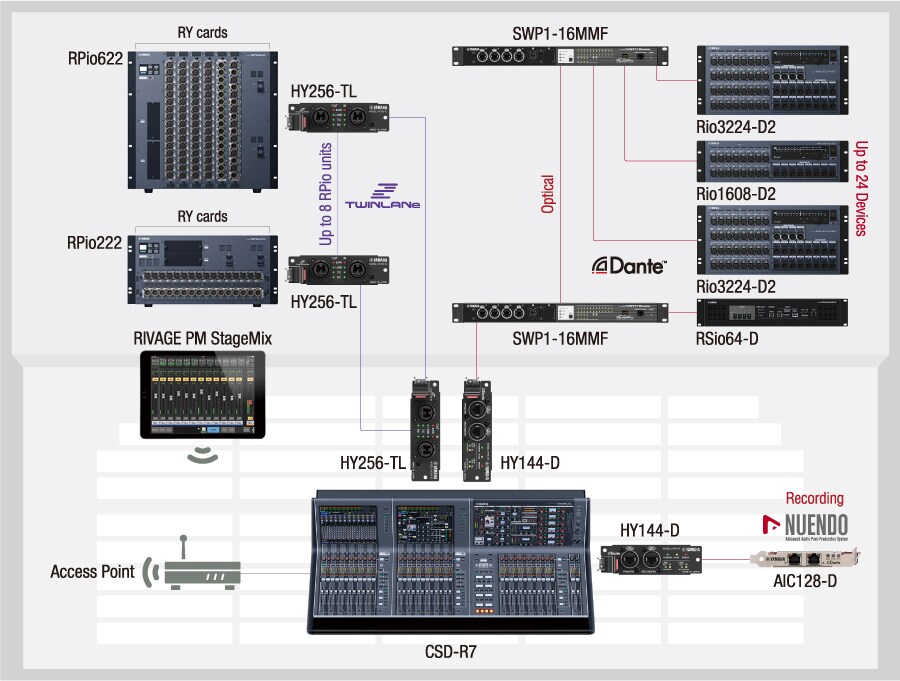

In RIVAGE PM systems it is possible to combine and simultaneously operate Rio3224-D2/Rio1608-D2 units connected via Dante, and RPio622/RPio222 units connected via TWINLANe. A Dante network can accommodate up to 24 Dante devices, including Rio3224-D2/Rio1608-D2 units, while a TWINLANe network can connect up to eight RPio622/RPio222 units. The entire system can operate at 96 kHz.

CL/QL System: Backward Compatibility, Flexible Dante Networking

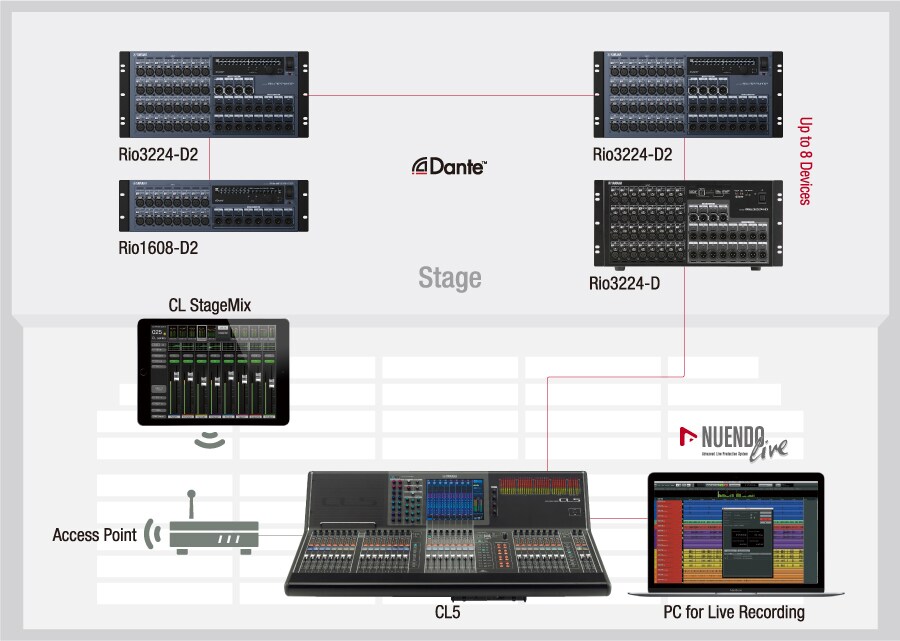

Second-generation Rio3224-D2 and Rio1608-D2 I/O Rack units can be used alongside first-generation Rio3224-D and Rio1608-D units on the same network. In addition to remote control from CL or QL series digital mixing consoles, the Rio3224-D2 and Rio1608-D2 allow numerous parameters to be controlled directly from the I/O Rack interface. This makes it possible to correct unexpected problems directly from the stage area, without having to interrupt the FOH workflow.
